エレベーター・エスカレーター

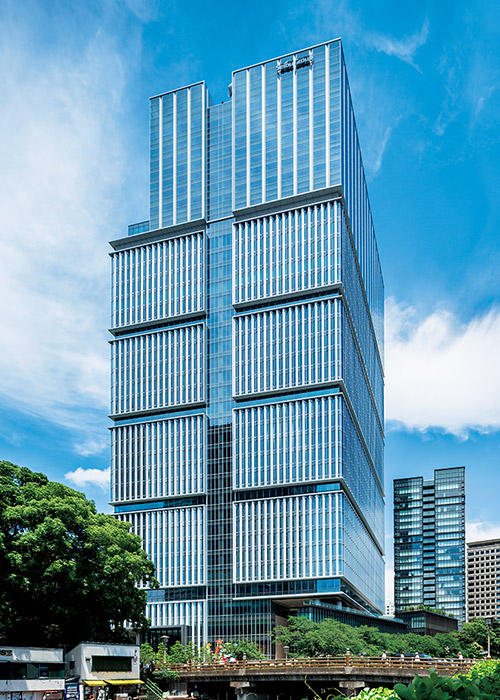

東京・紀尾井町のグランドプリンスホテル赤坂跡地に建つ。低層部に商業施設の入る紀尾井タワーと、紀尾井レジデンス、東京都指定有形文化財のホテル旧館(旧李王家東京邸)を保存・復原した赤坂プリンスクラシックハウスで構成される。外構には、敷地の高低差を利用して周囲に開かれたパブリックスペースと緑地が設けられている。
- 所在地:
- 東京都千代田区
- 設計:
- 株式会社 日建設計
Elevator(Main specification)
Year of Completion 2016 / Elevator 23 units
Car No. | EV1-4 | EV5-8 | EVh1-h3 | EVh4 | EVh5 |
---|---|---|---|---|---|
Use | Passenger | Passenger | Passenger | Passenger | Service |
Capacity (kg) | 1,450 × 2 | 1,450 × 2 | 1,300 | 1,350 | 1,200 |
Persons | 22 × 2 | 22 × 2 | 20 | 20 | 18 |
Speed (m/min) | 360 | 300 | 360 | 45 | 210 |
Units | 4 | 4 | 3 | 1 | 1 |
Stops | 10 | 12 | 3 | Front: 1, Rear: 1 | Front: 6, Rear: 7 |
Service Floor | EV2-4: 1-4, 23-28 EV1: B1, 1-4, 23-28 |
EV6-8: 1-4, 17-24 EV5: B1, 1-4, 17-24 |
2, 4, 36 | Front: 1, Rear: 2 | Front: B1, 2-4, 35, 36 Rear: 30-36 |
Notes | Double Deck, Handicapped |
Double Deck, Handicapped |
Shuttle, Handicapped |
Two-gate, Handicapped |
Two-gate, Handicapped |
Car No. | EVh6-h7 | EVh8-h10 | EVh11 | EVh12 | EVr1-r3 |
---|---|---|---|---|---|
Use | Service | Passenger | Passenger | Passenger | Passenger |
Capacity (kg) | 1,200 | 1,150 | 1,600 | 1,000 | 800 |
Persons | 18 | 17 | 24 | 15 | 12 |
Speed (m/min) | 210 | 105 | 105 | 45 | 120 |
Units | 2 | 3 | 1 | 1 | 3 |
Stops | Front: 3, Rear: 7 | 7 | 7 | 2 | 23 |
Service Floor | Front: B1, 2, 4 Rear: 30-36 |
30-36 | 30-36 | 35, 36 | B2, B1, LOBBY, 2~21 |
Notes | Two-gate, Handicapped |
Handicapped | Handicapped | Handicapped | Handicapped |
