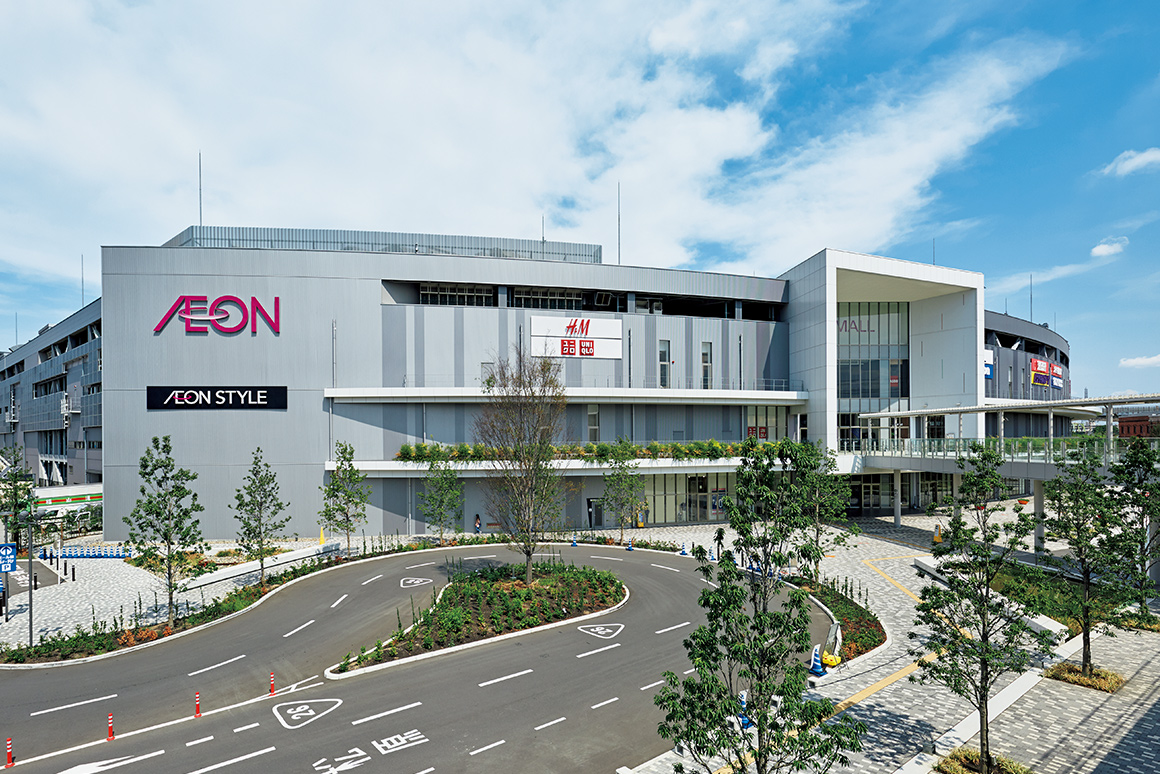

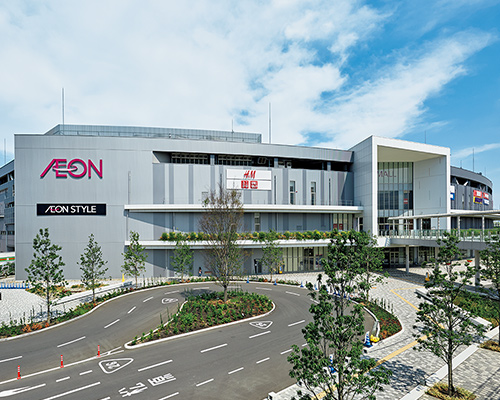

大阪府堺市の南海本線七道駅直結する工場跡地に建設されたショッピングモール。店舗部分は1～3階で約160の店舗が入る。敷地内には歴史的建造物であるレンガ建物が遺されており、レストラン棟として活用されている。
- 所在地：
- 大阪府堺市
- 設計：
- 株式会社 竹中工務店
- 商環境設計：
- 株式会社 ディ・ブレイン研究所

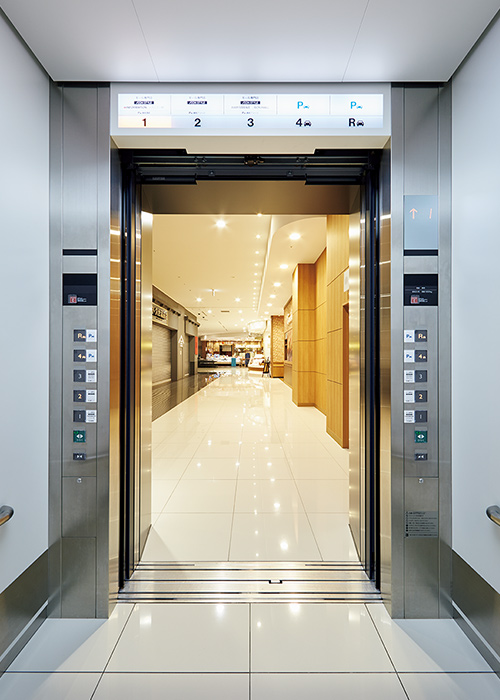

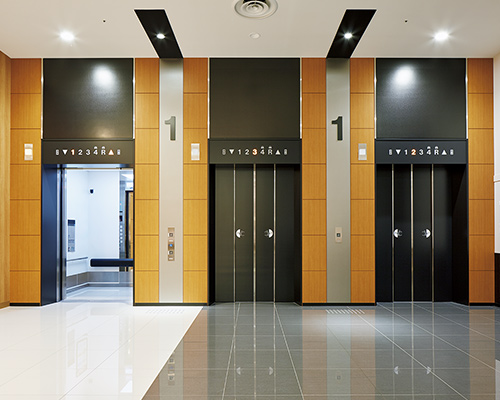

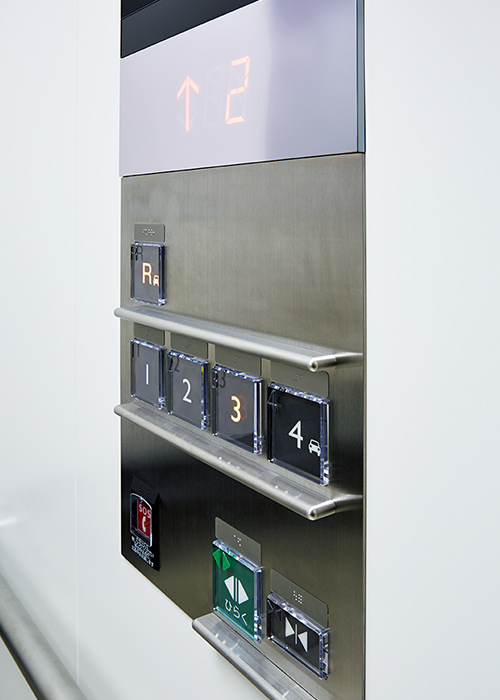

Elevator (Main specification)
Year of Completion 2016 / Elevator 18 units
| Car No. | EV1-EV3 | EV4, EV5 | EV6, EV7 | EV8 | EV9 | EV10 |
|---|---|---|---|---|---|---|
| Use | Passenger | Passenger | Passenger | Freight | Service | Service |
| Capacity (kg) | 1,600 | 1,600 | 1,600 | 1,500 | 1,600 | 1,600 |
| Persons | 24 | 24 | 24 | ー | 24 | 24 |
| Speed (m/min) | 45 | 45 | 45 | 45 | 45 | 45 |
| Units | 3 | 2 | 2 | 1 | 1 | 1 |
| Stops | 5 | 5 | 5 | 5 | 3 | 3 |
| Service Floor | 1-3, EV4, EVR | 1-3, EV4, EVR | 1-3, EV4, EVR | 1-4, R | 1-3 | 1-3 |
| Notes | EV1: Handicapped |
EV4: Handicapped |
EV6: Handicapped |
| Car No. | EV11,12 | EV13 | EV14 | EV15 | EV16 | P1, P2 |
|---|---|---|---|---|---|---|
| Use | Passenger | Service | Freight | Passenger | Passenger | Passenger |
| Capacity (kg) | 2,000 | 1,950 | 1,500 | 1,000 | 1,000 | 1,000 |
| Persons | 30 | 30 | ー | 15 | 15 | 15 |
| Speed (m/min) | 45 | 45 | 45 | 45 | 45 | 45 |
| Units | 2 | 1 | 1 | 1 | 1 | 2 |
| Stops | 5 | Front: 1, Rear: 2 |
Front: 1, Rear: 4 |
Front: 1, Rear: 1 |
2 | 6 |
| Service Floor | 1-4, EVR | Front: 1, Rear: 2, 3 |
Front: 1, Rear: 2-4、EVR |
Front: 1, Rear: 2 |
1-2 | 1-5, R |
| Notes | EV11: Handicapped |
Two-gate | Two-gate | Two-gate | Handicapped |
Escalator (Main specification)
Year of Completion 2016 / Escalator 32 units
| Car No. | A1, A2 | A3, A4 | B1, B2 | B3, B4 | B5, B6 | B7, B8 | C1, C2 | C3, C4 |
|---|---|---|---|---|---|---|---|---|
| Type | S1000 | S1000 | S1000 | S1000 | S1000 | S1000 | S1000 | S1000 |
| Speed (m/min) | UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
| Service Floor | 1-2 | 2-3 | 1-2 | 2-3 | 3-4 | 4-R | 1-2 | 2-3 |
| Rise (mm) | 5,600 | 5,300 | 5,600 | 5,300 | 5,370 | 4,460 | 5,600 | 5,300 |
| Angle | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Car No. | C5, C6 | C7, C8 | D1, D2 | D3, D4 | D5, D6 | D7, D8 | E1, E2 | E3, E4 |
|---|---|---|---|---|---|---|---|---|
| Type | S1000 | S600 | S1000 | S1000 | S600 | S600 | S1000 | S1000 |
| Speed (m/min) | UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
UP: 30 DN: 20 |
| Service Floor | 3-4 | 4-R | 1-2 | 2-3 | 3-4 | 4-R | 1-2 | 1-2 |
| Rise (mm) | 5,370 | 4,410 | 5,600 | 5,300 | 5,370 | 4,300 | 6,260 | 6,170 |
| Angle | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Units | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
