エレベーター・エスカレーター

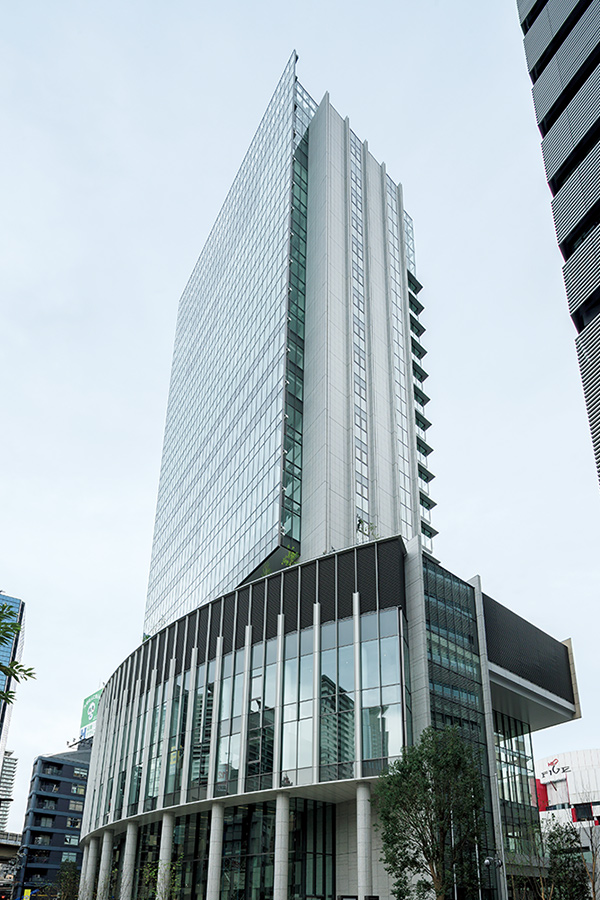

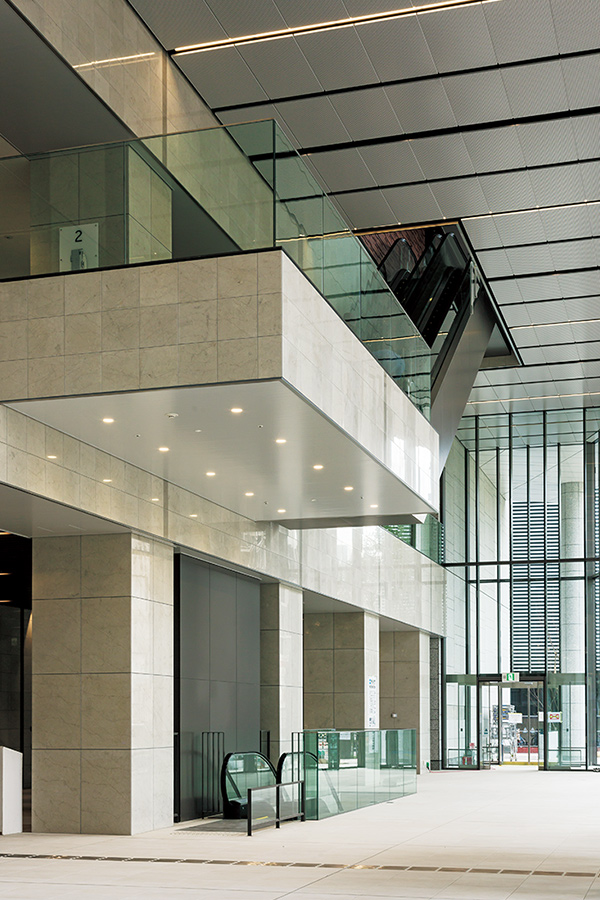

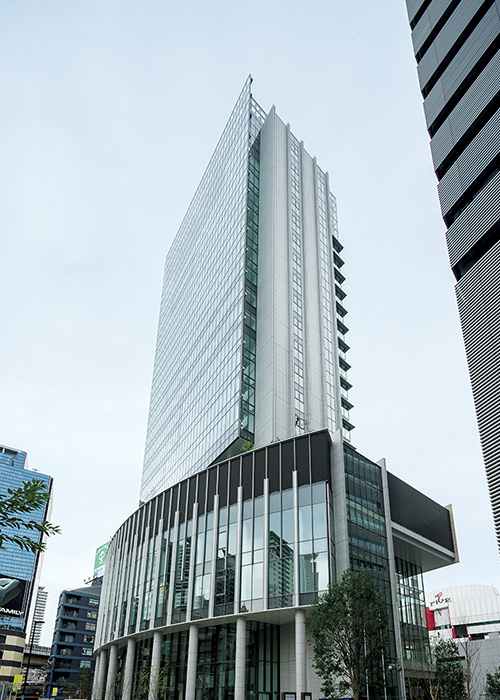

大阪市・梅田に建つ、地上21階建て、高さ約125mの大阪工業大学の新キャンパス。低層部にレストランやコンベンションホール、高層部に大学の講義室や産学連携の研究を行うラボなどが入る。
- 所在地:
- 大阪府大阪市
- 設計:
- 服部・石本・安井設計監理共同企
業体

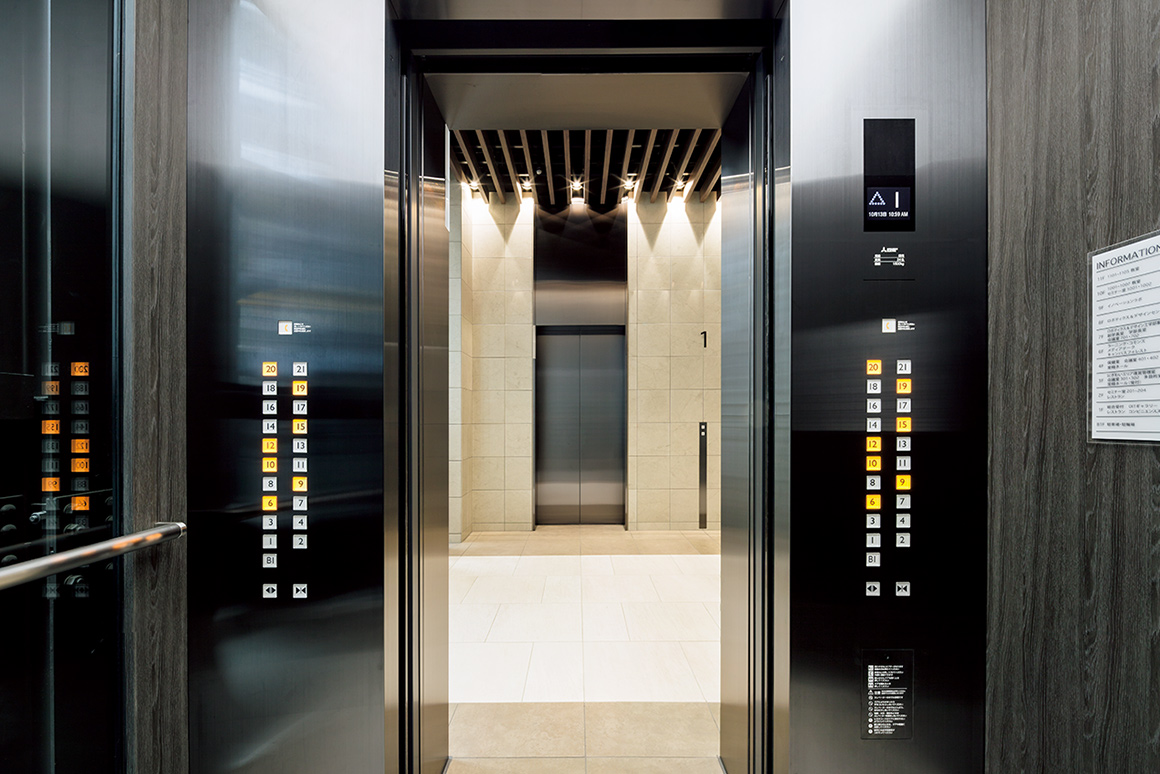

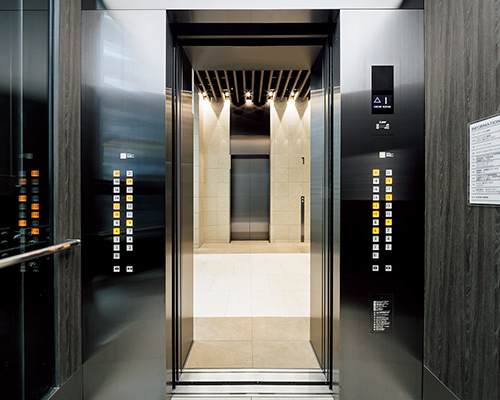

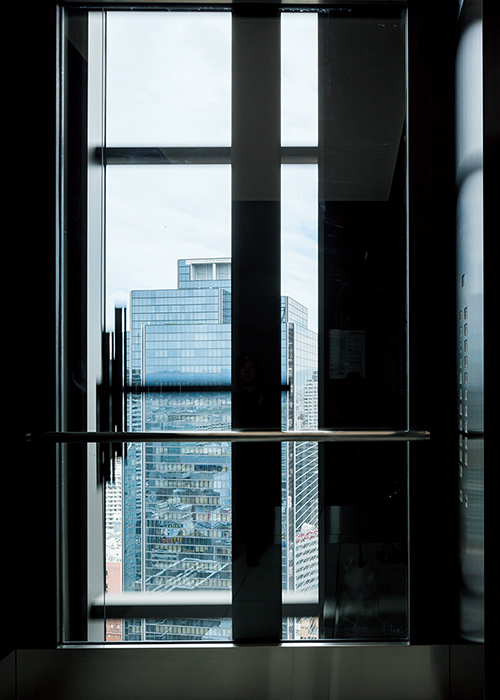

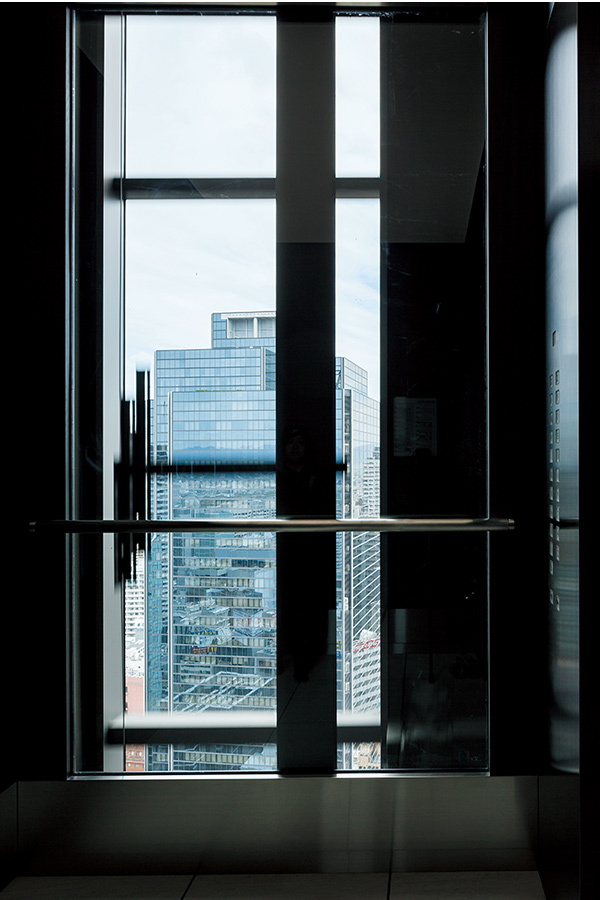

Elevator(Main specification)
Year of Completion 2016 / Elevator 9 units
Car No. | 1-5 | 6 | 7 | 8 | 9 |
---|---|---|---|---|---|
Use | Passenger | Passenger | Service/ Firefighting |
Passenger | Passenger |
Capacity (kg) | 1,600 | 1,750 | 1,800 | 1,300 | 900 |
Persons | 24 | 26 | 26 | 20 | 13 |
Speed (m/min) | 180 | 180 | 180 | 105 | 45 |
Units | 5 | 1 | 1 | 1 | 1 |
Stops | 21 | 4 | 24 | 6 | 2 |
Service Floor | B1, 1-4, 6-21 | 1, 3, 4, 21 | B2, B1, 1-22 | B2, B1, 1-4 | B1,1 |
Notes | Handicapped | Handicapped |

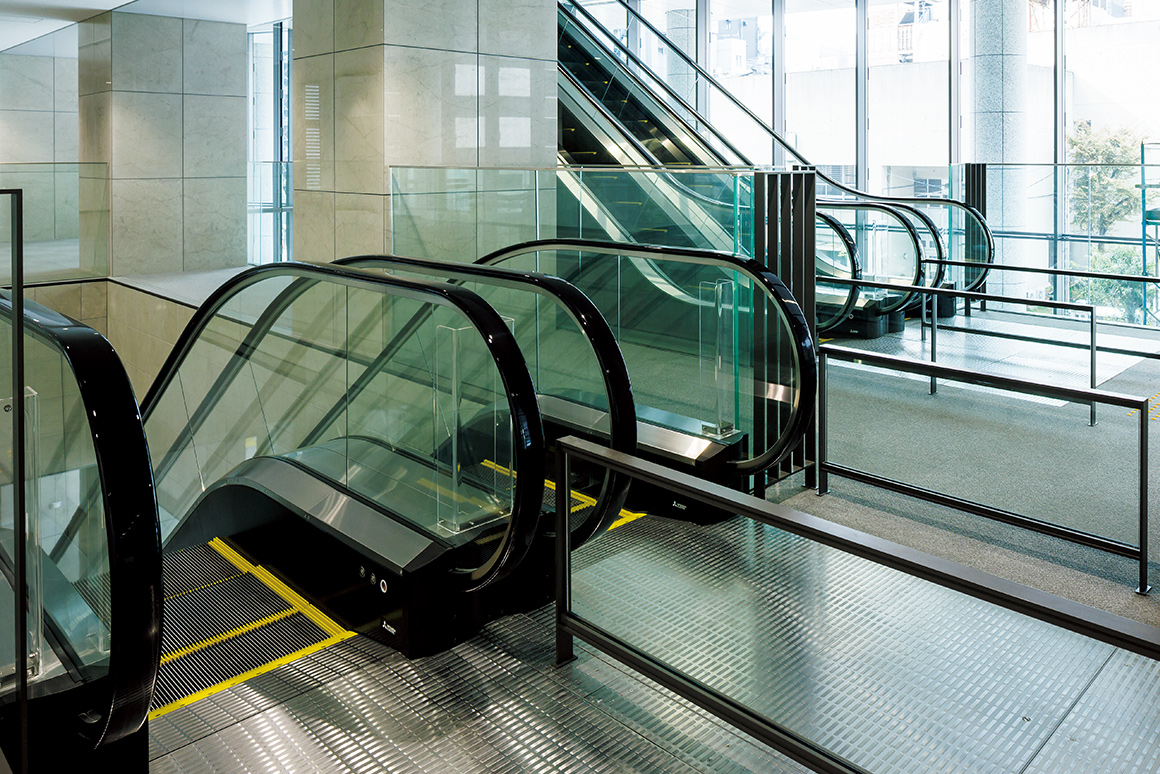

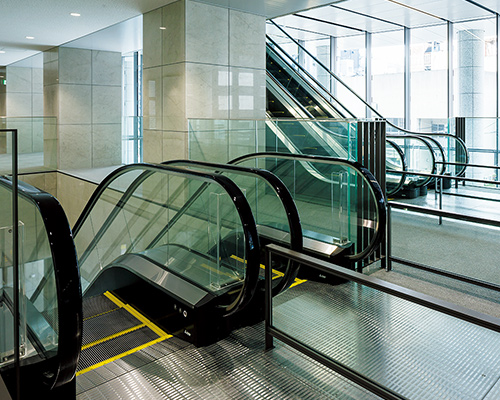

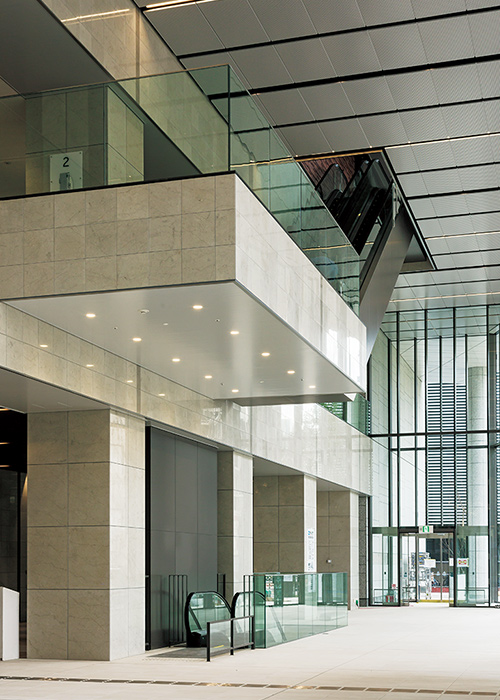

Escalator(Main specification)
Year of Completion 2016 / Escalator 6 units
Car No. | A1 | A2 | A3, A4 | A5, A6 |
---|---|---|---|---|
Type | S600 | S600 | S600 | S600 |
Speed (m/min) | 30 | 30 | 30 | 30 |
Service Floor | B2-B1 | B1-1 | 1-2 | 2-3 |
Rise (mm) | 3,830 | 4,324 | 6,000 | 6,000 |
Angle | 30 | 30 | 30 | 30 |
Units | 1 | 1 | 2 | 2 |
